Board and Batten Roll Forming Machine | High-Efficiency Trim Line

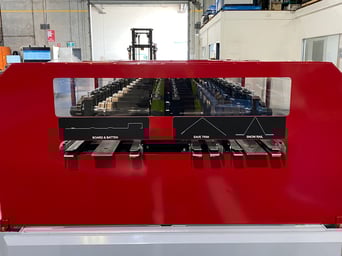

Bradbury Group Australia has completed an innovative, cutting-edge board and batten machine as part of a 3x1 blank-fed trim line, designed for efficiency, and long-term durability. The system operates using a simple on/off motor, with speed
controlled via a potentiometer. Because the line is blank-fed, material can be processed as quickly as the operator can feed it, maximizing throughput.

These board and batten machines are highly customizable, offering exceptional versatility with a range of optional features available. Bradbury Group Australia can also engineer this equipment as a standalone board and batten machine, which would be approximately half the width of the 3x1 machine —ideal for operations requiring a more compact footprint without sacrificing capability or durability.

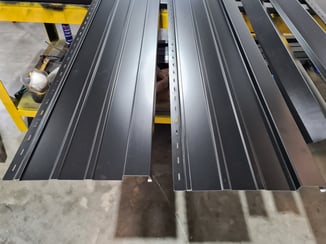

The machine offers adjustable pan widths through tooling and the ability to roll ribs or striations in or out, providing flexibility across different profiles. It is also available as a coil-fed system with a pre-shear, simplifying operation, and improving workflow. In a coil-fed configuration, the line can run at speeds of up to 100 feet per minute, enabling significantly higher production volumes.

Key Specifications

• Profiles – Board and batten with customizable trim selections
• Material Gauge – 29-22
• Footprint –18 feet long x 3.5 feet wide x 4.9 feet high


As a proud member of the global manufacturing leader The Bradbury Company, Bradbury Group Australia combines extensive experience, diverse expertise, innovation, and dedication to deliver superior outcomes for our customers.

The companies within The Bradbury Group are recognized worldwide for cutting-edge technology, built-in reliability, and exceptional service. These qualities enable us to consistently meet and exceed customer expectations across global markets.

We are committed to setting the standard in automated production and systems integration within the metal processing industry—providing solutions that enhance efficiency, performance, and long-term value.

Experience what Bradbury Australia has to offer!
