It Looks Flat, but does it stay Flat?


Adjusting precision roller levelers

A precision roller leveler will produce flat sheets from coiled steel. If the leveler is not adjusted properly, stress can be induced in the material causing bow in the end product.

Bradbury_edrive_image1


Stress Test:


The picture (below) shows hand cutting strips with plasma for burn test on .250" X 72" hot rolled steel X 46 KSI yield. With all of the back ups flat, the leveler was producing flat sheets. However, after the burn test was preformed, the strips showed upbow on outer edges.

Looks Flat Blog image



Upbow in leveled steel

With all of the backups flat, the leveler was producing flat sheets.  However, after the burn test was performed, the strips showed upbow on outer edges.

up bow in leveled steel sheets



The leveler was 96" wide so the #1 and #7 backups were outside the material strip width.

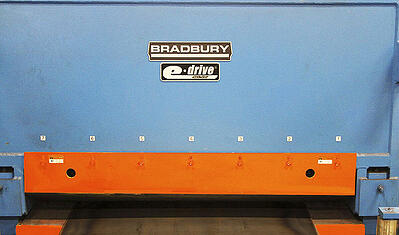

Bradbury e drive leveler


Adjustments Made

bradbury TSC leveler control

Lowering the #1 and #7 entry backups improved the bow but did not eliminate the problem.

bradbury TSC leveler control

The next adjustment was to lower the exit #1 and #7 backups which resulted in a flat sheet in all directions and produced good laser material.

Flat steel sheets after burn test Flat steel sheets after burn test

This proved that the machine is under an even load where material is being worked. The cylinders that do not have material over them and are not lowered away will put upward pressure on the edges of the coil causing stress to be induced in the coil.

The Solution:

The operator must know where the material is in the leveler and lower the entry and exit backups that are outside of the strip width.

To make this adjustment easier, new Bradbury Leveler Controls will display where the material is running on the control screen allowing the operator to make adjustments right from the console.

Bradbury TSC Leveler control new

Material position in leveler is now designated by green numbered backups.

Bradbury E drive leveled steel

Do you have questions about your leveler or coil processing line? Give us a call at 1-620-345-6394 or contact us by clicking the button below.  You can visit our video library by clicking http://info.bradburygroup.com/video-library-0
